ART007_FTTH Outdoor Drop Fiber Optic Cable GJYXFCH

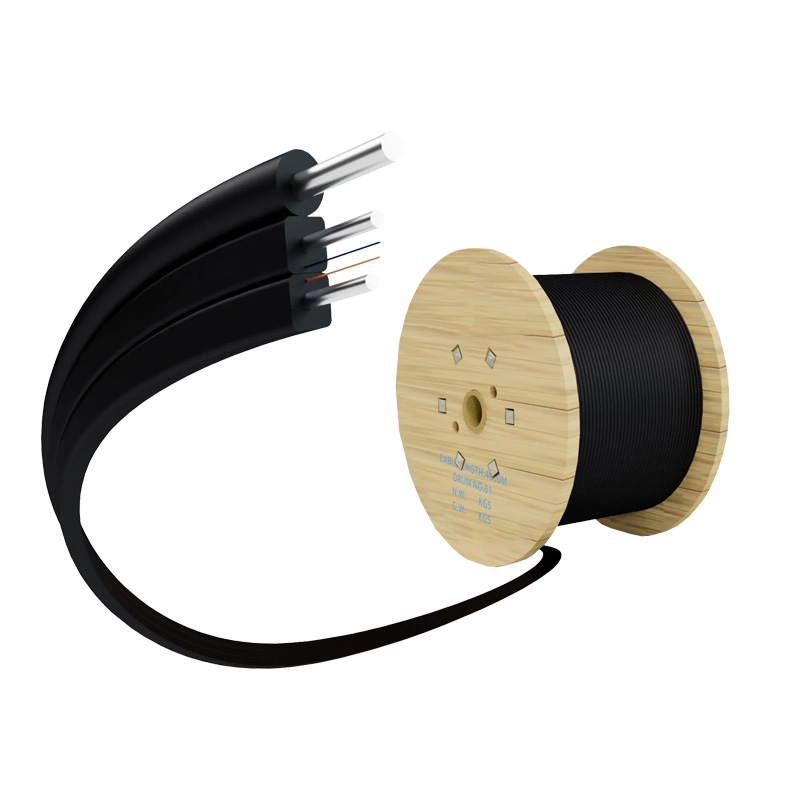

FTTH Outdoor Drop Cable is a special fiber optical cable for outdoor wiring of fiber-to-the-home (FTTH) networks.The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP, STEEL WIRE) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or colored LSZH sheath. The outer sheath of the FTTH Outdoor Drop Cable is made of weather-resistant and corrosion-resistant materials, which can operate stably for a long time in the outdoor environment and protect the internal structure of the optical cable from external influences.
      Product Literature
Specification

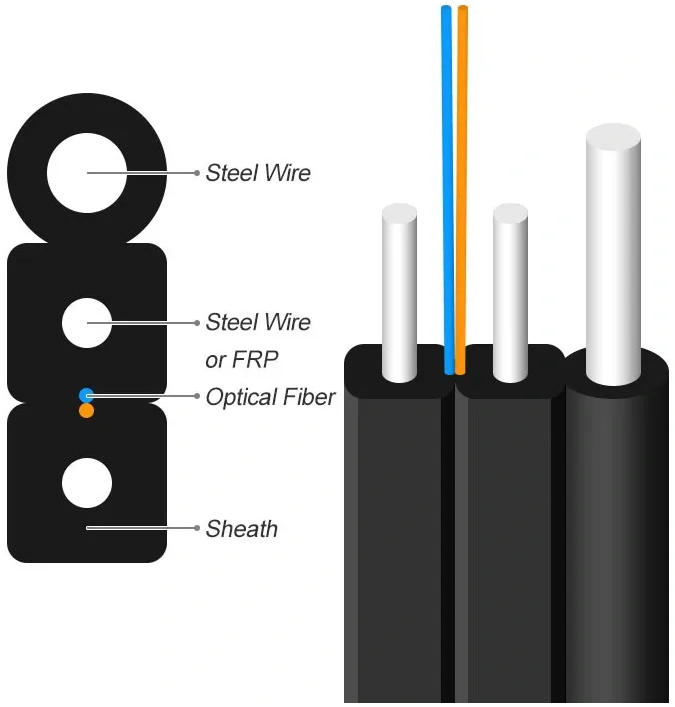

Cable Structure

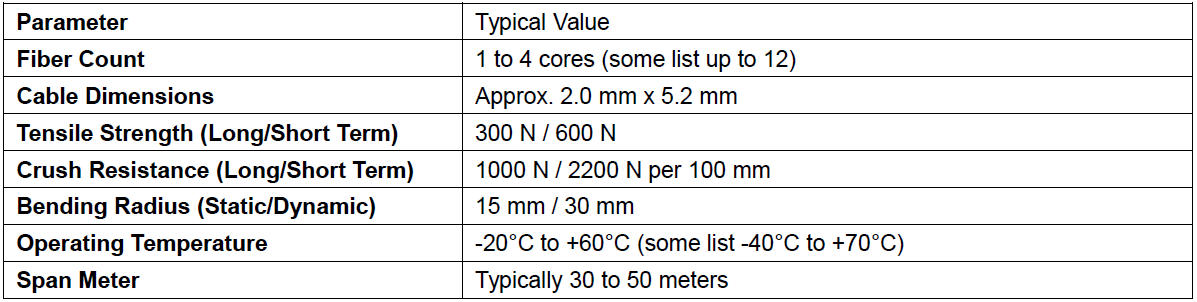

Parameter

Products Overview

Key Features & Applications

✅ Aerial Self-Supporting: The steel messenger allows the cable to span distances between poles without extra tensioning hardware, simplifying installation.
✅ Easy Stripping: The "bow-type" cross-section features a notch design, making it quick to peel open for splicing and termination.
✅ FTTH Drop Connection: It is the standard choice for the final outdoor drop segment connecting the distribution network to a subscriber's home.

If you need to compare this with the GYFXTBY model we discussed earlier, the main difference is that GJYXFCH includes a steel messenger wire for aerial use, whereas GYFXTBY is an all-dielectric (non-metallic) cable meant for routing along walls or ducts.
