FTTX 2 IN 1 FastConnect and OptiTap Harden Optical Connector Cable Assemblies-ARTIC FIBER TECHNOLOGY

FTTX 2 IN 1 FastConnect and OptiTap Harden Optical Connector Cable Assemblies

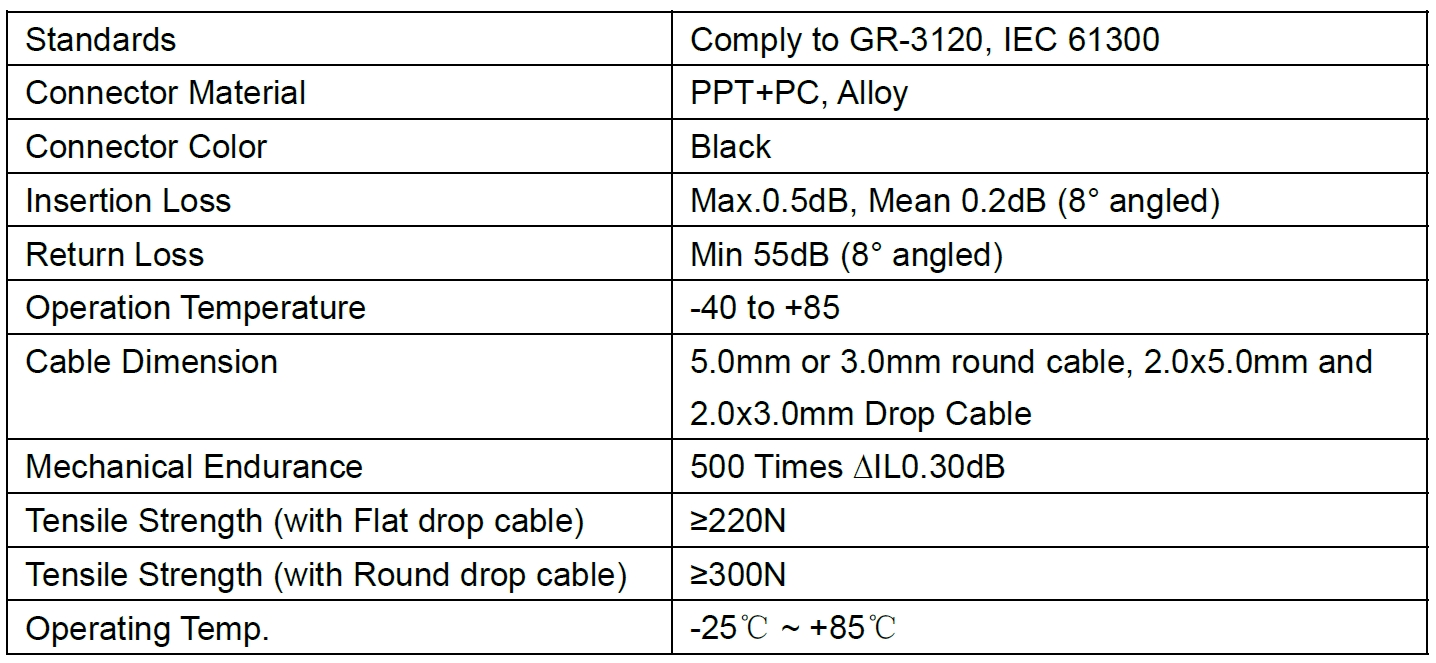

ARTIC this kinds of pre-connectorized cable compatible for HUAWEI and Corning solution. Cable Diameter using 2.0x3.0/2.0x5.0mm flat cable and 3.0/5.0mm round drop cable. We also accept OEM Services. Insertion loss SM/APC≤ 0.3dB, Return loss SM/APC≥50dB. Cable using LSZH gray color with low friction. FTTX 2 IN 1 FastConnect and OptiTap Harden Optical Connector Cable Assemblies are your best ODN solution. This kind of of Hardened connector combines 2 solutions compatible for OptiTap and FastConnect, it can be outdoor harsh environment connectors together, also can meet with OptiTap adapter and FastConnect mini SC adapter. This connector makes change different connecting method in field possible. This cable assemblies provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations. This connector guarantees an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch. It provides quick installation solutions and has good performance on mating with OptiTap adapter and FastConnect mini SC adapter. Cable can be 3.0/5.0mm round drop cable and Fig.8 type drop cable.

E-mail Product description

Talk to us

✔ Consist of Connector and Translator, compatible for OptiTap and FastConnect solution;
✔ 100% Pre-terminated from factory with highly performance and reliability;
✔ Easy to expansion without quality degradation, no need to open the FAT box to activate new subscribers;
✔ Simple operation no special tools required;
✔ Suitable for both indoor and outdoor application;
✔ Resistant to extremely weather condition, temperature change, humidity, salt fog, water-proof and dust-free;
✔ Complies with IEC 61754-4 Standard;
✔ Provides moisture and dust protection for use in harsh industrial environments;
✔ IP68 protection, salt-mist proof, humidity proof, dust proof;
✔ Makes change different connecting method in field possible;
✔ Utilize traditional field installation techniques for aerial, below ground and duct applications;
✔ Reduce installation time by as much as 50 percent per network access point;
✔ 100% optically tested to ensure quality performance assemblies;
✔ Available in single mode and multimode styles to work with any common fiber type;
✔ Broad temperature range (-40 to +85°C) is ideal for indoor or outdoor applications.

✔ FTTH Application;
✔ Fiber optic communications in harsh outdoor environments;
✔ Outdoor communication equipment connection;
✔ Waterproof fiber equipment OptiTap and FastConnect port;
✔ Remote wireless base station;
✔ FTTx FTTA wiring project.
