24FO MTP®/MPO to LC Fiber Optical Cassette Module

The 24FO MTP®/MPO to LC Fiber Optical Cassette Module is a pre-terminated fiber optic cassette that facilitates the transition between MTP/MPO connectors and LC duplex connectors. It is specifically designed for high-density fiber optic networks, supporting both single-mode and multimode fiber types, including OS2, OM3, OM4, and OM5. The 24FO MTP®/MPO to LC Fiber Optical Cassette Module is a high-density fiber optic solution designed for efficient connectivity in data centers and structured cabling systems.

E-mail Product description

Talk to us

Parameter	Details
Fiber Count	24 fibers
Fiber Type	Single-mode OS2 (9/125µm), Multimode OM3/OM4/OM5 (50/125µm)
Front Connector Type	LC duplex (UPC or APC)
Rear Connector Type	MTP/MPO (APC or UPC, pinned or unpinned)
Insertion Loss	MTP/MPO: ≤0.35 dB; LC: ≤0.2 dB
Return Loss	MTP/MPO: ≥60 dB; LC: ≥50 dB
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 70°C

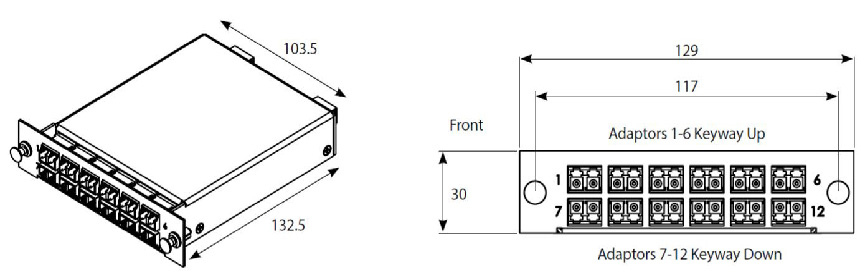

Dimensions	Typically 1U high, compatible with standard fiber optic patch panels
Applications	Data centers, FTTH, FTTB, FTTX networks, 40G/100G networks

Advantages

✔ Ease of Installation: Pre-terminated design simplifies installation and reduces labor costs.
✔ High Performance: Ensures low insertion loss and high return loss for reliable signal transmission.
✔ Versatility: Compatible with various fiber types and connector configurations.

✔ High-Density Connectivity: Supports 24 fibers, making it ideal for high-density fiber optic networks.
✔ Pre-Terminated and Tested: Factory pre-terminated and tested to ensure optimal performance, reducing installation time and effort.
✔ Compatibility: Compatible with various fiber types, including single-mode OS2 and multimode OM3/OM4/OM5.
✔ Color-Coded Adapters: Adapters are color-coded for easy identification (e.g., blue for single-mode OS2, aqua for OM3).
✔ Low Insertion Loss: Insertion loss is ≤0.35 dB for MTP/MPO and ≤0.2 dB for LC connectors, ensuring minimal signal degradation.
✔ High Return Loss: Return loss is ≥60 dB for MTP/MPO and ≥50 dB for LC connectors, providing excellent signal integrity.
✔ Modular Design: Allows for easy capacity expansion and hardware upgrades.
✔ RoHS Compliance: Meets RoHS standards for environmental safety.

✔ Data Centers: Ideal for high-density fiber optic cabling in data centers, supporting 40G and 100G network applications.
✔ FTTH/FTTB/FTTX Networks: Suitable for fiber-to-the-home, fiber-to-the-building, and fiber-to-the-x networks.
✔ Structured Cabling: Enables rapid configuration and networking, reducing installation time.
