✔ Flexible Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment;
✔ Flexible structure plus very small branching unit, allowing installation in constrained spaces;
✔ Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments;
✔ Utilize traditional field installation techniques for aerial, below ground and duct applications;
✔ Reduce installation time by as much as 50 percent per network access point;
✔ 100% optically tested to ensure quality performance assemblies;
✔ Available in single mode and multimode styles to work with any common fiber type;
✔ Broad temperature range (-40 to+70°C) is ideal for indoor or outdoor applications;
✔ Mark on dust cap can help people who cannot distinguish between colors to operate.
✅ Installation Options
✔ Aerial Mounting: Includes stainless steel hanger brackets.
✔ Strand Mounting: Compatible with standard strand clamps.
✔ Pedestal Mount: Fits 8" and 10" pedestals.
✔ Wall Mount: Pre-drilled mounting holes.
✅ Performance Characteristics
✔ Splice Loss: ≤0.1 dB (fusion) / ≤0.3 dB (mechanical).
✔ Water Resistance: Passes 1m immersion test.
✔ Impact Resistance: IK08 rating (5J impact).
✔ UV Stability: 20+ years outdoor life.
✅ Typical Applications✔ FTTH distribution points.
✔ Fiber backbone terminations.
✔ MDU fiber distribution.
✔ Aerial-to-drop transitions.
✔ 5G small cell fronthaul.
✅ Application in the Field

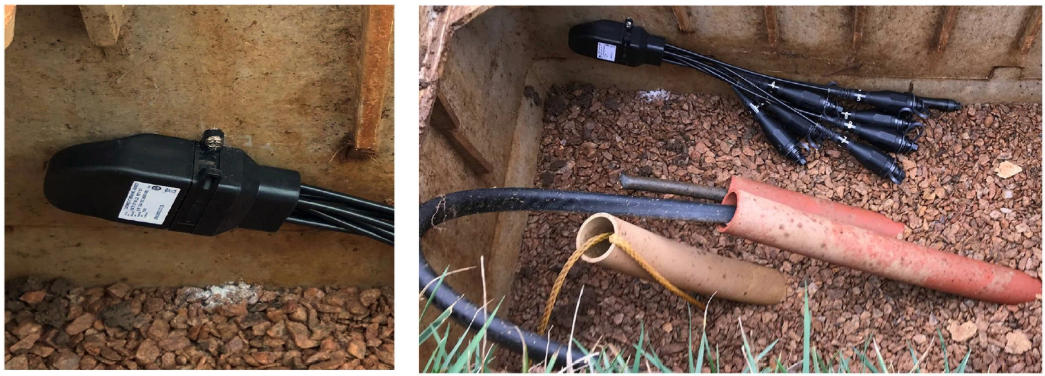

✔ Installing FST-T in Hand Hole / Pit.
