2 Cores FTTH Drop Mini Outdoor-rated Fiber Optical Closure-ARTIC FIBER TECHNOLOGY

2 Cores FTTH Drop Mini Outdoor-rated Fiber Optical Closure

This kind of 2 Cores FTTH Drop Mini Outdoor-rated Fiber Optical Closure from CHINA ARTIC design and manufacturing, it typically refers to a compact, environmentally sealed enclosure designed to protect fiber optic splices and terminations for FTTH (Fiber to the Home) drop cables with 2 cores. These closures are essential for ensuring reliable and durable connections in outdoor environments.

✅ Function: These closures are used to protect fiber optic splices and connections in FTTH networks, particularly where drop cables (often with 2 cores) are connected to distribution cables or where splices are needed in the last mile of the network.

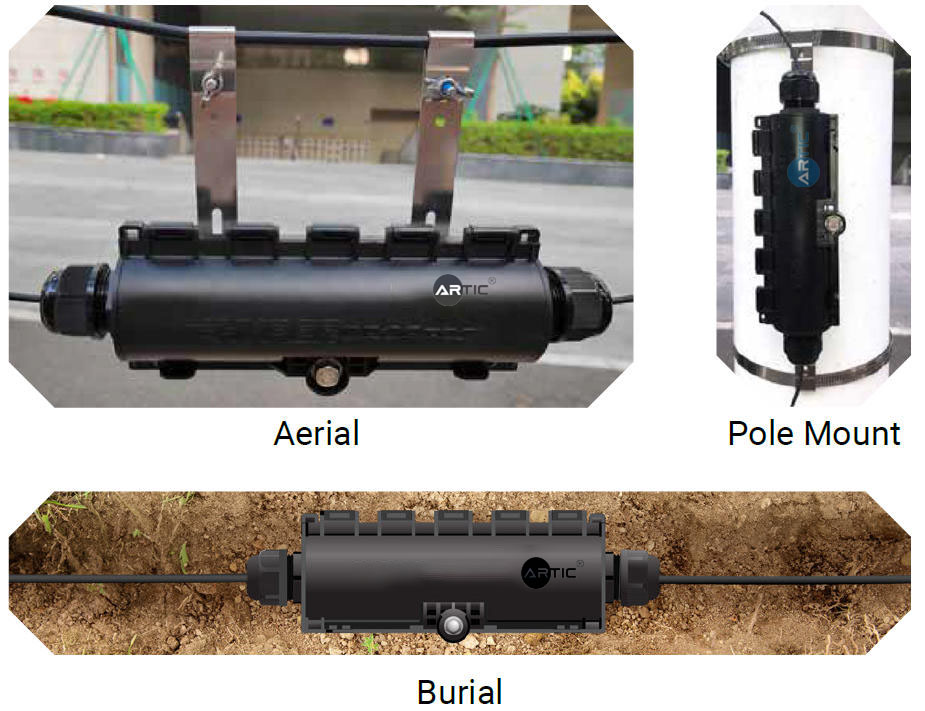

✅ Use Cases: They are suitable for outdoor environments such as aerial (mounted on poles), underground (buried), pipeline, or wall-mounted installations. Their compact size makes them ideal for space-constrained applications.

E-mail Product description

Talk to us

✅ Capacity: Designed for low fiber counts (e.g., 2 cores), but may be part of a system that supports up to 48 cores in larger variants.
✅ Cable Compatibility: Compatible with FTTH drop cables, which often have a figure-8 design (self-supporting for aerial use) and use G.657 fibers for bend-insensitive performance.
✅ Materials: Housing made from durable plastics like PC or PPR, with internal components (e.g., splice trays) designed for easy fiber management.

✅ Compact Design: Mini closures are designed to be small and lightweight, accommodating limited fiber counts (e.g., 2 cores) while providing robust protection.

✅ Outdoor Rating: They are built to withstand harsh environmental conditions, with features like:
✔ IP68 Protection: Ensures dust-tight and waterproof performance, even when submerged.
✔ Weather Resistance: Materials like high-strength PC (polycarbonate) or PPR (likely a typo; may refer to polypropylene or similar) are used to resist UV radiation, temperature fluctuations (-40°C to +65°C), and physical impacts.

✅ Sealing Method: Many use mechanical sealing (e.g., elastomer seals or gel-based sealing) for easy re-entry and maintenance while maintaining reliability.

✅ Installation Flexibility: They support various installation methods, including aerial, buried, duct, and wall-mounted, without requiring special tools.

✅ Installation and Maintenance

✅ Ease of Use: Designed for quick installation and re-entry, with features like:
✔ Tool-less or minimal-tool access.
✔ Modular splice trays that can be easily added or removed.

✅ Reusability: Some closures feature patented sealing mechanisms that allow repeated opening and closing without compromising performance.
✅ Application: These closures are used to protect fiber optic splices and connections in FTTH networks, particularly where drop cables (often with 2 cores) are connected to distribution cables or where splices are needed in the last mile of the network.
