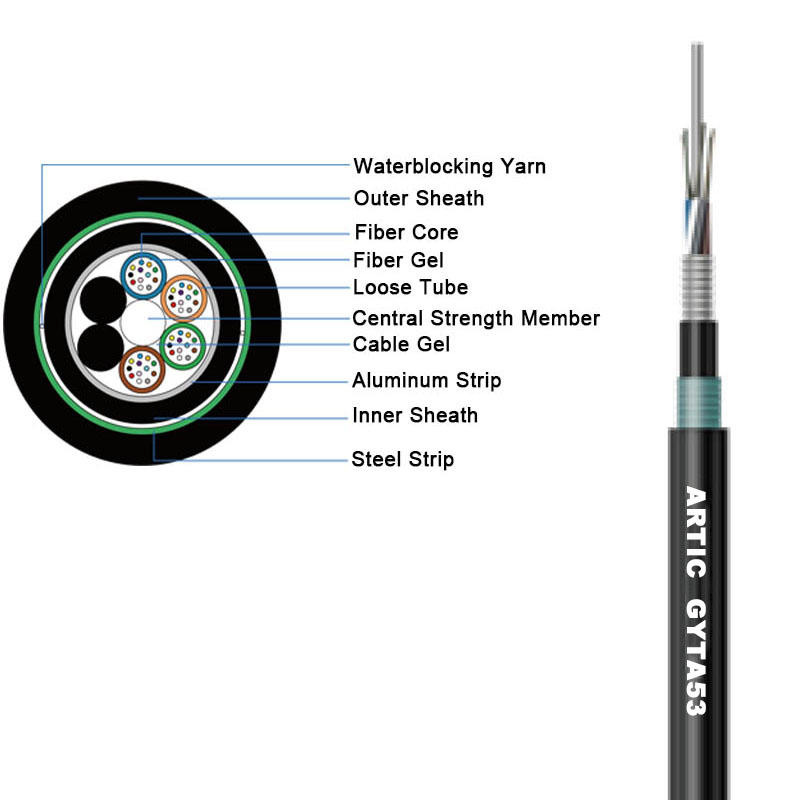

✔ Central Strength Member (CSM): A metal wire (usually steel) runs through the center, providing the main tensile strength for the cable.
✔ Loose Tubes & Fiber Protection: Optical fibers are placed within high-modulus plastic (PBT) tubes filled with water blocking gel. This protects the fibers from moisture and mechanical stress. The tubes (and filler rods when needed) are stranded around the central strength member.
✔ Waterproofing: The gaps within the cable core are filled with water-blocking compounds to prevent water from traveling along the cable, a feature crucial for direct burial.
✔ Double-Layer Armor & Sheath: This is the defining feature of the GYTA53.
✔ Inner Sheath: A corrugated aluminum tape (APL) is longitudinally wrapped and covered with a Polyethylene (PE) inner sheath. This layer provides excellent moisture-proofing.
✔ Outer Armor & Sheath: A corrugated steel tape (PSP) is longitudinally wrapped over the inner sheath and then extruded with a black, UV-resistant PE outer sheath. This steel armor provides high resistance to crushing, impact, and rodent attack.
✔ Outer Sheath: The final layer is a black, UV-resistant Polyethylene (PE) jacket, which is durable for outdoor environments. A low-smoke zero-halogen (LSZH) version (GYTZA53) is also available for applications with stricter fire safety requirements.

Application

✔ Direct Burial: The primary application. Its steel tape armor and robust防水设计make it ideal for going directly into the ground without the need for a conduit, protecting against soil pressure, moisture, and rodent damage.
✔ Duct and Trench: Can be pulled through underground ducts or laid in trenches, especially in scenarios requiring high mechanical robustness.
✔ Long-Distance & Inter-office Communication: Suitable for backbone networks due to its high fiber count capacity and reliability.

The GYTA53 is a double-armored, loose tube, layer-stranded outdoor fiber optic cable. Its key characteristic is the double-layer metal tape armor (Aluminum tape + Steel tape), which provides superior mechanical protection, making it exceptionally suitable for direct burial applications, as well as duct and trench installations. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress. GYTA53 is the steel tape armored outdoor fiber optic cable used for direct buried. single mode GYTA53 fiber optic cable and multimode GYTA53 fiber optic cables; fiber counts from 2 to 432.
